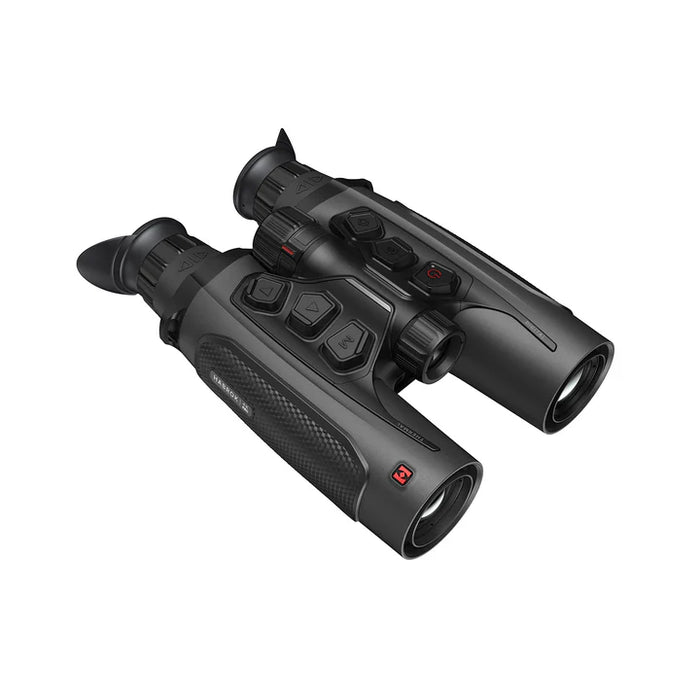

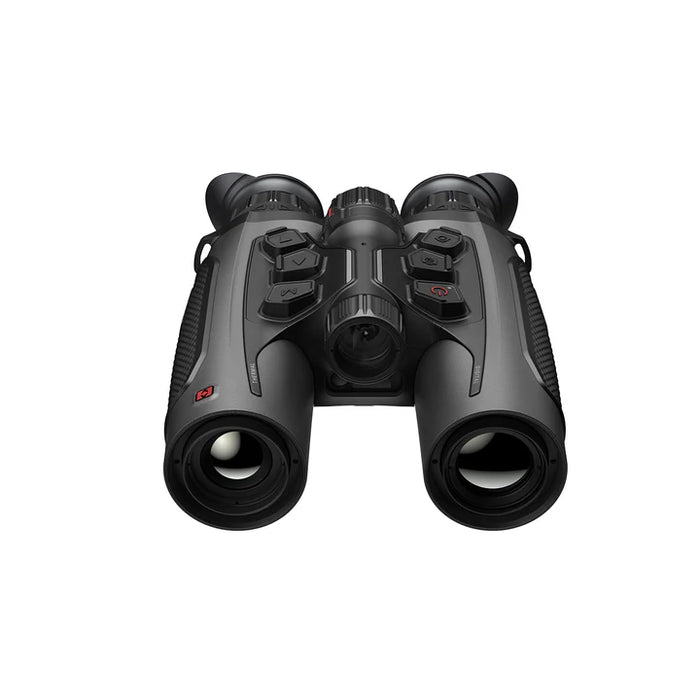

Hikmicro Habrok 4K HE25L 2.0

Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 256 × 192
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 18 mK (@25°C), F#=1.0
Lens (Focal Length) 25 mm, F1.0
Focus Mode Rear Focus Wheel
Detection Range 1200 m
Min. Focusing Distance 3 m
Magnification

4.3x~17.2x (4x)
Support 2×, 3x, 4x, 5x Zooming Value, Support Zoom in and out

Field of View(H × V), Degrees
/ m @100m

7.0° × 5.3°/12.2 m × 9.3 m

Optical Module
Image Sensor 1/1.8 Progressive Scan CMOS
Max. Resolution 3840 × 2160
Focal Length 60 mm, F2.2
Min. Working Distance 8 m
Focus Mode Rear Focus Wheel
Magnification

5.5x~22.0x(4x)
Support 2×, 3x, 4x, 5x Zooming Value, Support Zoom in and out

Field of View (H × V),
Degrees/m @100 m

7.3° x 4.1°/12.8 m × 7.2 m

Smart IR Yes
IR Illuminator Wavelength 940 nm (default) and 850 nm (replaceable)
Viewing Range at Night 400 m
Replaceable IR Illuminator Yes

Image Display
Display 0.49 inch, OLED, 1920 × 1080
Palettes

Thermal: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green
Monochrome; Optical: Day, Night, Auto, Green, Yellow

Exit Pupil 8 mm
Eye Relief 15 mm
Diopter (Range) -5D~+3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes

Electric Image Stabilization Supports Both Thermal and Digital Channels, Starting from 2x
Zoom Pro Yes
HSIS (HIKMICRO Shutterless
Image System)

Yes

System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Digital Magnetic Compass Yes
GPS Yes
Local Album Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time ≥6.5 h (25 °C, with hotspot and LRF on)
Type-C Power Supply

5V DC, 2 A
Supports External Power Supply, Supports Direct Charging

General
Protection Level IP67
Dimension 143.1mm × 74.8 mm × 223.3 mm (5.63" × 2.95" × 8.8")
Working Temperature -30°C~+55°C
Weight 895g without Batteries
Interpupillary Adjustment
Range

60 mm to 74 mm
Mounting Adapter 1/4“-20-UNC
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m
